Product Details

Portable Briefcase RCIED ,Briefcase Jammer is a wide-band portable jamming system, designed for the protection of VIP’s and groups of people from radio controlled improvised explosion by disabling the radio exploder control lines in dangerous areas and for the prevention of leakage of information through intercepting units during confidential talks. Briefcase Jammer transmits RF interference and creates a “Radio Frequency Protected Zone” around the object that prevents remote controlled bomb activation by various RF means in its vicinity with a sufficient jamming safety radius, in order to save lives and prevent serious injuries. Briefcase Jammers are also deployed to guard forces in the field, Dignitaries and VIP’s, checkpoint and border rossings, roadblocks, Embassies, Police and Government offices etc. Briefcase Jammer are available in various models as per the frequency and output power. However these jammers can be customized as per the user requirements.

PCB-6068  Myanmar ( 8 Bands)
920-965MHz: 100W

GSM 900

1800-1990MHz 100W

DCS GSM 1800

2100-2170MHz: 100W

3G UMTS

2500-2700MHz: 100W

4G LTE & WiMax

2300-2500MHz: 100W

4G LTE + WiFi & Bluetooth

850-895MHz: 100W

CDMA

5100-5900MHz: 50W

WiFi 11.a

1570-1620MHz: 100W

GPS L1 + Glonass L1

Civil Remote Contorl Toys: 200-300MHz:100W, 300 -400MHz:100W: GPS L1 L2 L3 L4 L5: 100W
750 W
Power supply: AC adapter   (AC220V-DC27V or 24V/  45 Amp)  or External Battery
Jamming  Range: 500-1000 meters@-75dBm







Stand-alone modular design and individual power control.
Adjustable Output Power each Band/Channel
VSWR over protection for each modular.
Working status indicator for each band modular.
Cover network standards: AMPS,N-AMPS, DCS,NMT,TACS,GSM,CDMA,TDMA,IDEN,UMTS
                          450MHz/VHF/UHF/WiFi/GPS/4G WiMax, VHF, UHF
Designed to cut off down-link only, Therefore it doesn’t have Interference to base station and repeater.
Dimension:626 mm(L)×49.2mm(W)× 350mm(H), Pelican 1620
Weight:45 Kg (approximately) just main unit not included antenna & all accessories
Operating temperature: -20℃ ~ +60℃
Humidity: 5% ~ 90%
Antennas Spec 850-960Mhz : Omni 5dBi, 900mm, 1.5Kg
  5100-5900Mhz : Omni 10dBi, 900mm, 1.5Kg
  1805-1990Mhz : Omni 5dBi, 900mm, 1.5Kg
  2000-2200Mhz : Omni 6dBi, 900mm, 1.5Kg
  2400-2500Mhz : Omni 7dBi, 900mm, 1.5Kg
  2500-2650Mhz : Omni 7dBi, 900mm, 1.5Kg
  400-500MHz: Omni 4 dBi, 900mm, 1.5Kg
External Battery B-50AH  27V/50AH LiFePo4 Battery
  Pelican Case 1440, 35kg Weight
  Work 1-2 hours
Warranty: 1 year

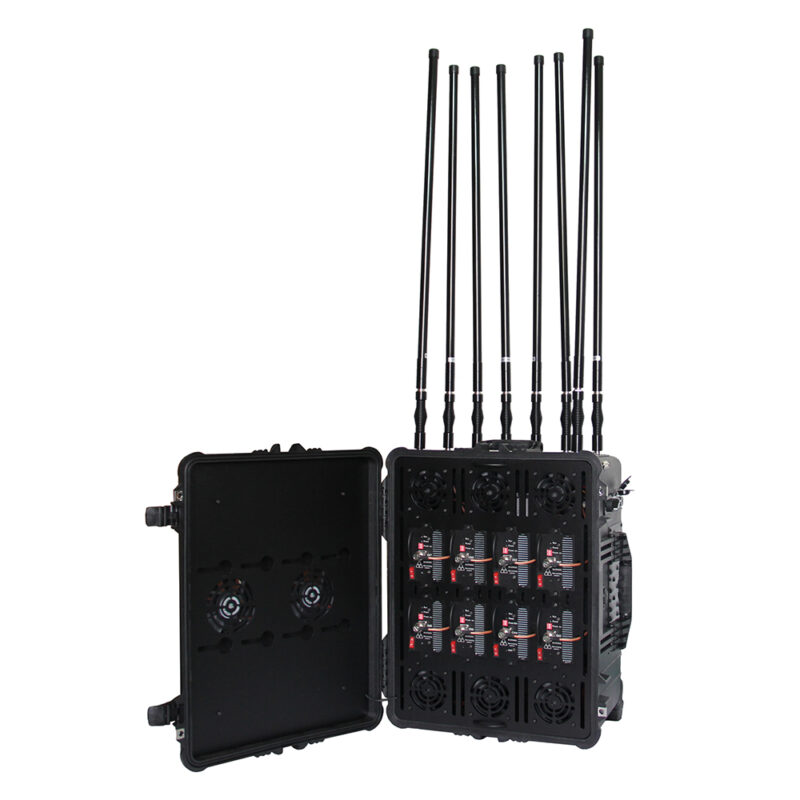

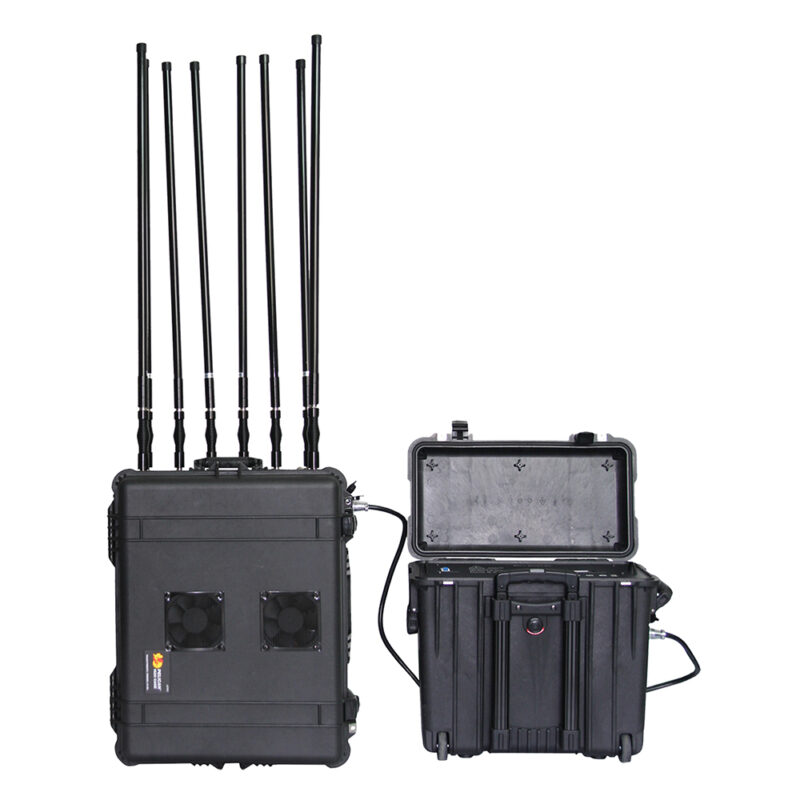

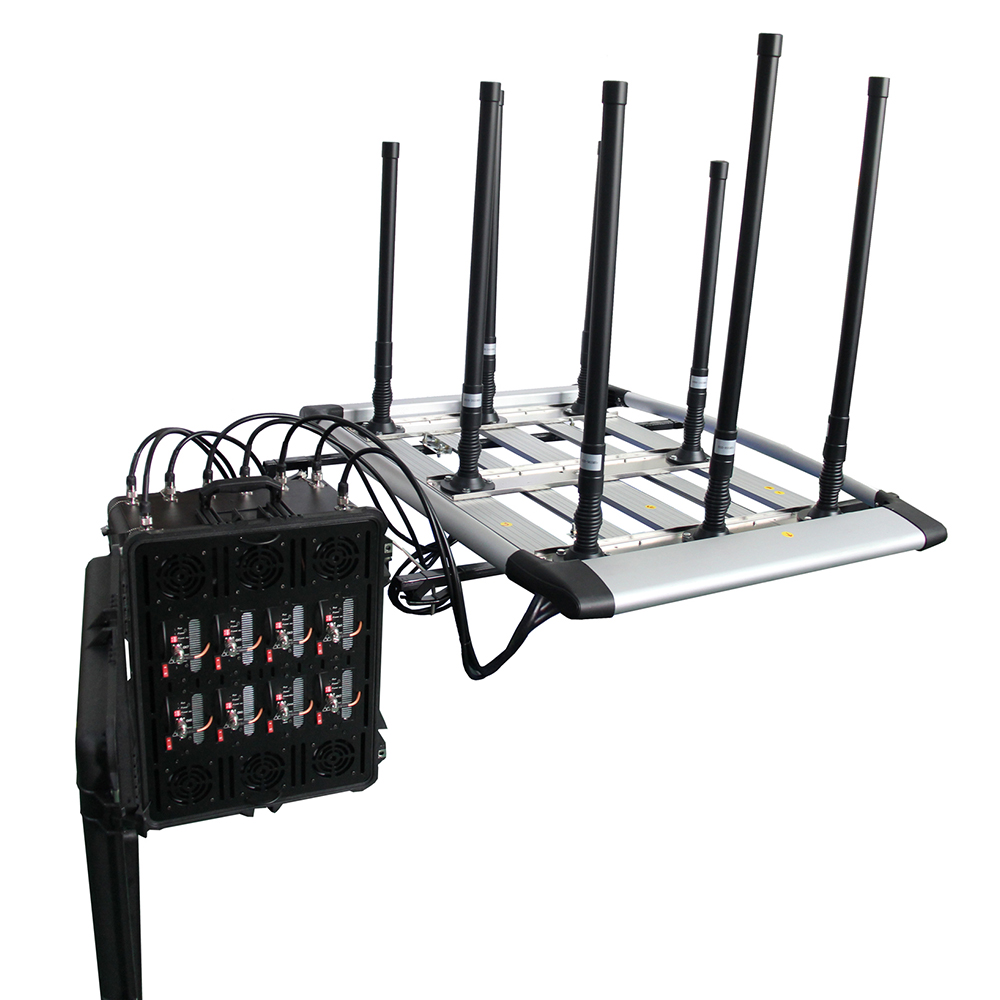

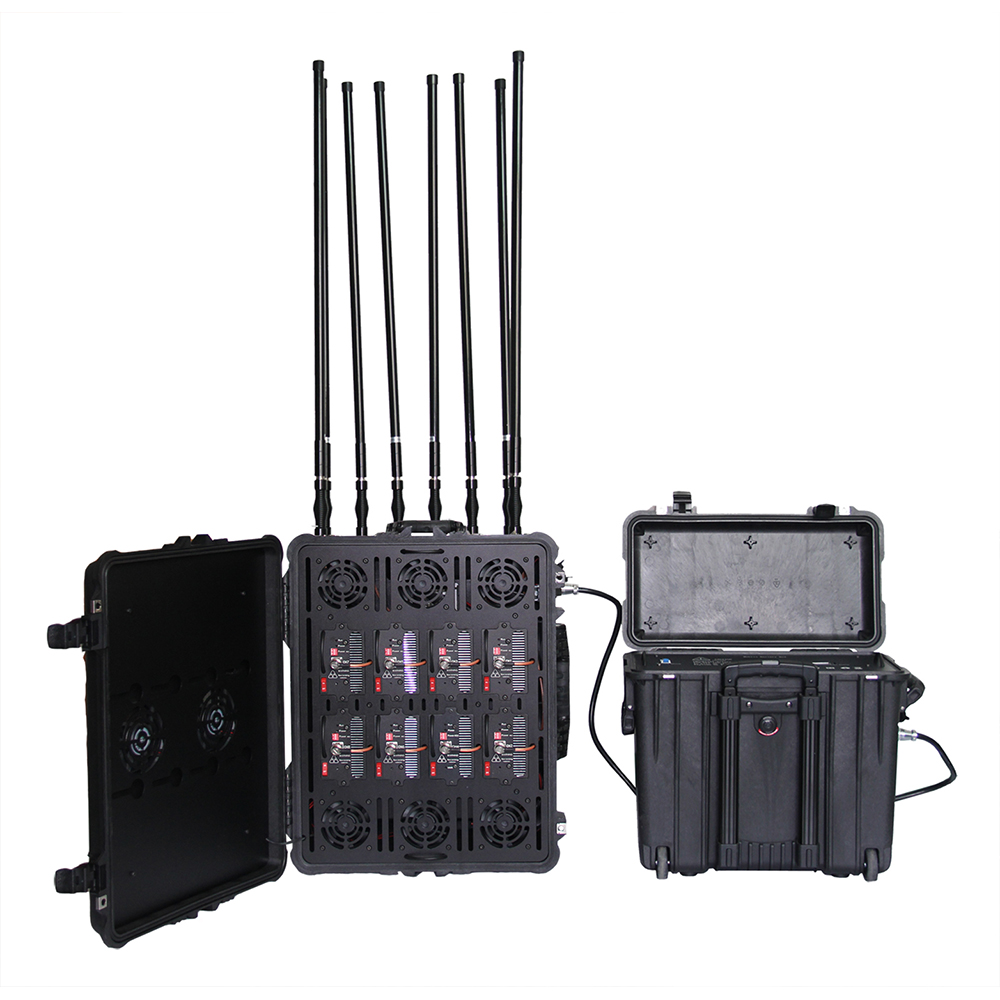

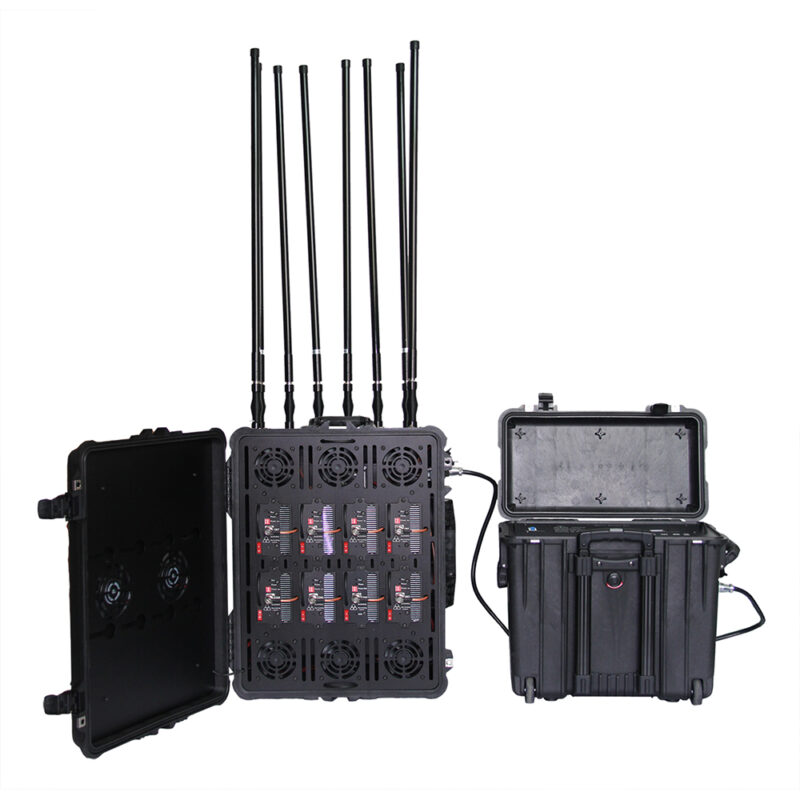

Techwise PCB-6068 8 Bands 800W Portable Mobile Phone Pelican Jammer Indonesia

Military/Police/Government/Convoy Jamming

Portable RCIED Mobile Phone Pelican Jammer

Max 800W 8 Bands
