Product Details
Portable Briefcase RCIED ,Briefcase Jammer is a wide-band portable jamming system, designed for the protection of VIP’s and groups of people from radio controlled improvised explosion by disabling the radio exploder control lines in dangerous areas and for the prevention of leakage of information through intercepting units during confidential talks. Briefcase Jammer transmits RF interference and creates a “Radio Frequency Protected Zone” around the object that prevents remote controlled bomb activation by various RF means in its vicinity with a sufficient jamming safety radius, in order to save lives and prevent serious injuries. Briefcase Jammers are also deployed to guard forces in the field, Dignitaries and VIP’s, checkpoint and border rossings, roadblocks, Embassies, Police and Government offices etc. Briefcase Jammer are available in various models as per the frequency and output power. However these jammers can be customized as per the user requirements.
PCB-6060E Europe ( 6 Bands) | PCB-6060A America ( 6 Bands) | |
920-965MHz: 100W
GSM 900 |
850-895MHz: 100W
CDMA 900 |
|
1800-1880MHz 100W
DCS GSM 1800 |
1920-1990MHz 100W
PCS CDMA 1900 |
|
2100-2170MHz: 100W
3G UMTS |
2100-2170MHz: 100W
3G UMTS |
|
2620-2690MHz: 100W
4G LTE & WiMax |
2500-2700MHz: 100W
4G LTE & WiMax |
|
2400-2500MHz: 100W
WiFi & Bluetooth |
2400-2500MHz: 100W
WiFi & Bluetooth |
|
790-830MHz: 100W
4G Low LTE |
700-800MHz: 100W
4G Low LTE |
|
(Option) 5.0-5.5GHz:10W, 5.5-6.0GHz:10W WiFi 11.a
20-50MHz: 50W 66-88MHz:50W Civil Remote Contorl Toys: 200-300MHz:60W, 300-400MHz:60W: VHF 130-180MHz:50W, UHF 420-480MHz:50W, GPS L1 L2 L3 L4 L5: 30W |
(Option) 5.0-5.5GHz:10W, 5.5-6.0GHz:10W WiFi 11.a
20-50MHz: 50W 66-88MHz:50W Civil Remote Contorl Toys: 200-300MHz:60W, 300-400MHz:60W: VHF 130-180MHz:50W, UHF 420-480MHz:50W, GPS L1 L2 L3 L4 L5: 30W |
|
600 W | 600 W | |
Power supply: | AC adapter (AC220V-DC27V or 24V/ 45 Amp) or External Battery | |
Jamming Range: | 500-1000 meters@-75dBm |

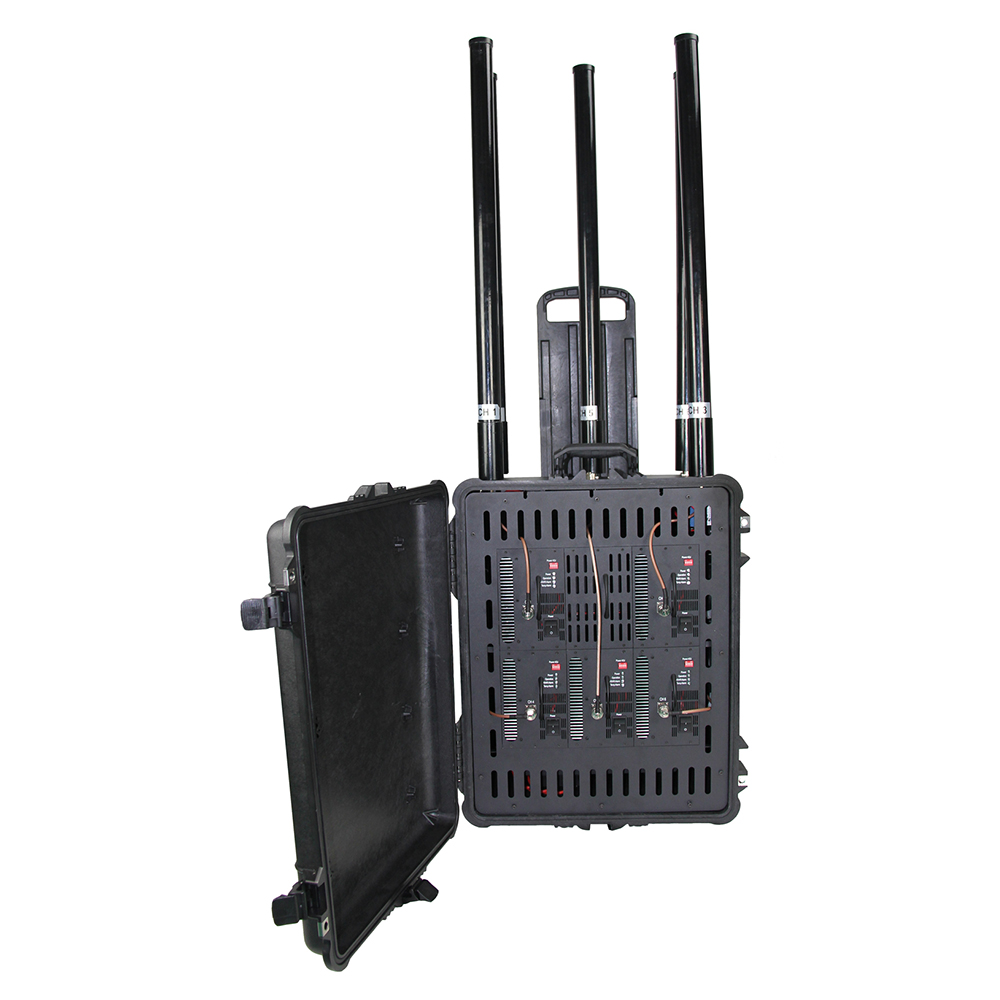

Stand-alone modular design and individual power control. | ||
Adjustable Output Power each Band/Channel | ||
VSWR over protection for each modular. | ||
Working status indicator for each band modular. | ||
Cover network standards: AMPS,N-AMPS, DCS,NMT,TACS,GSM,CDMA,TDMA,IDEN,UMTS | ||
450MHz/VHF/UHF/WiFi/GPS/4G WiMax, VHF, UHF | ||
Designed to cut off down-link only, Therefore it doesn’t have Interference to base station and repeater. | ||
Dimension:626 mm(L)×49.2mm(W)× 350mm(H) | ||
Weight:45 Kg (approximately) just main unit not included antenna & all accessories | ||
Operating temperature: -20℃ ~ +60℃ | ||
Humidity: 5% ~ 90% | ||
Antennas Spec | 850-960Mhz : Omni | 5dBi, 650mm, 0.8Kg |
1500-1600Mhz : Omni | 5dBi, 650mm, 0.8Kg | |
1805-1990Mhz : Omni | 5dBi, 650mm, 0.8Kg | |
2000-2200Mhz : Omni | 6dBi, 650mm, 0.8Kg | |
2400-2500Mhz : Omni | 7dBi, 650mm, 0.8Kg | |
2600-2650Mhz : Omni | 7dBi, 650mm, 0.8Kg | |

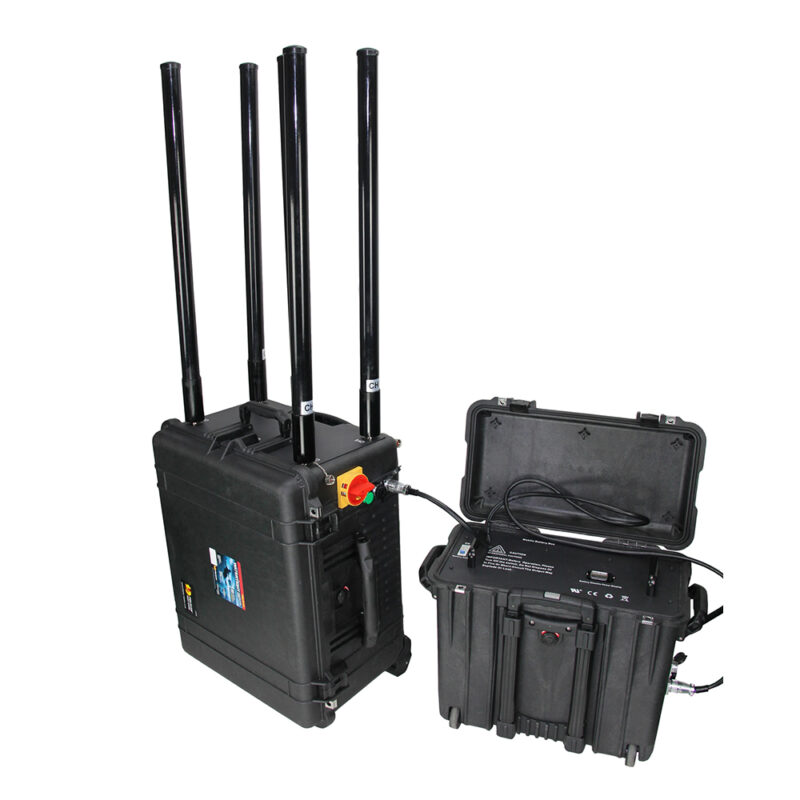

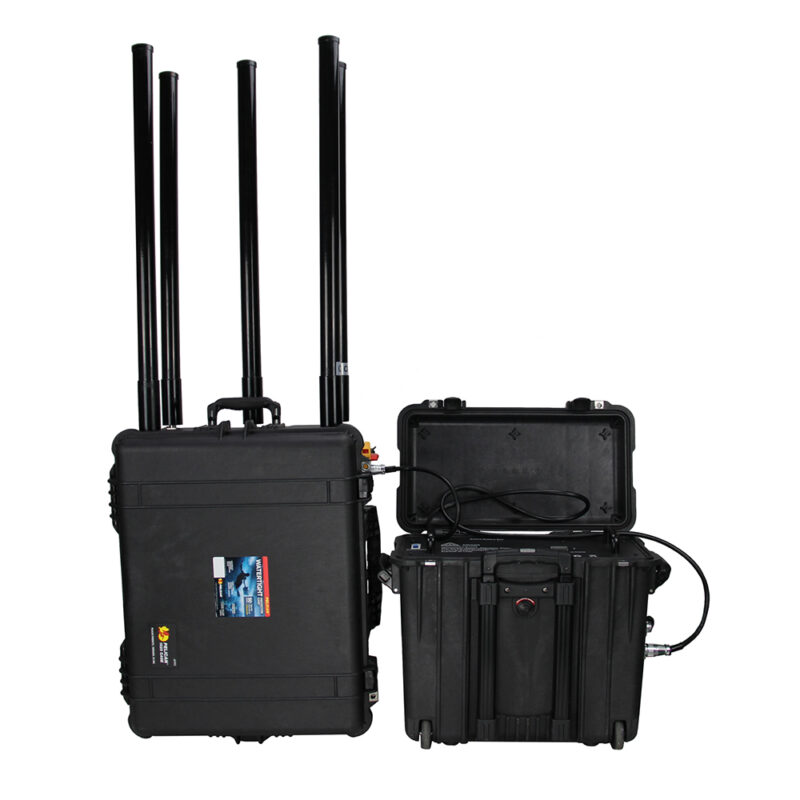

External Battery | B-50AH 27V/50AH LiFePo4 Battery | |
Pelican Case 1440, 35kg Weight | ||
Work 1-2 hours | ||
Warranty: | 1 year |

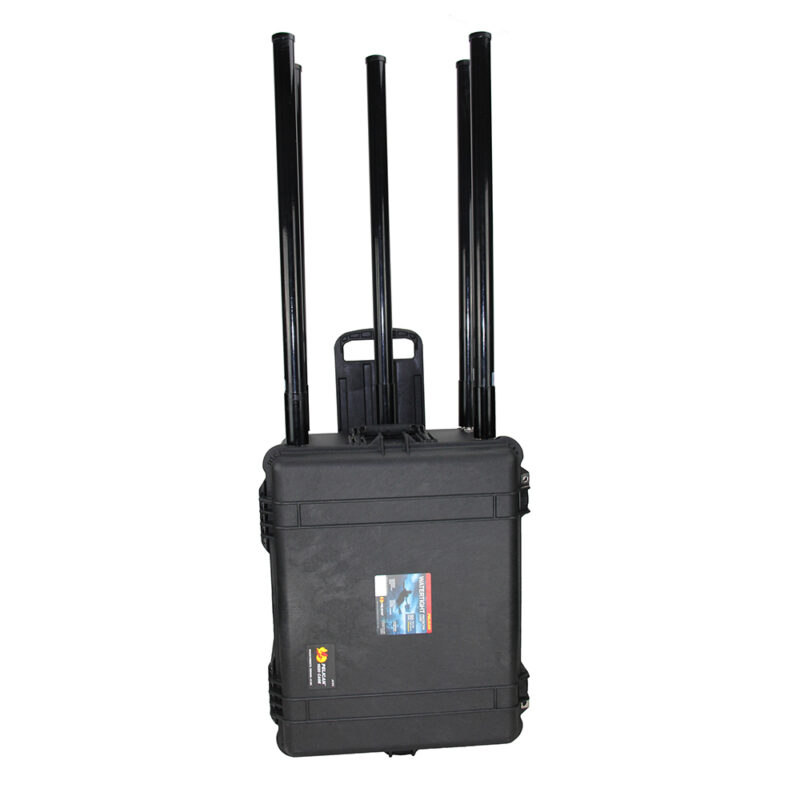

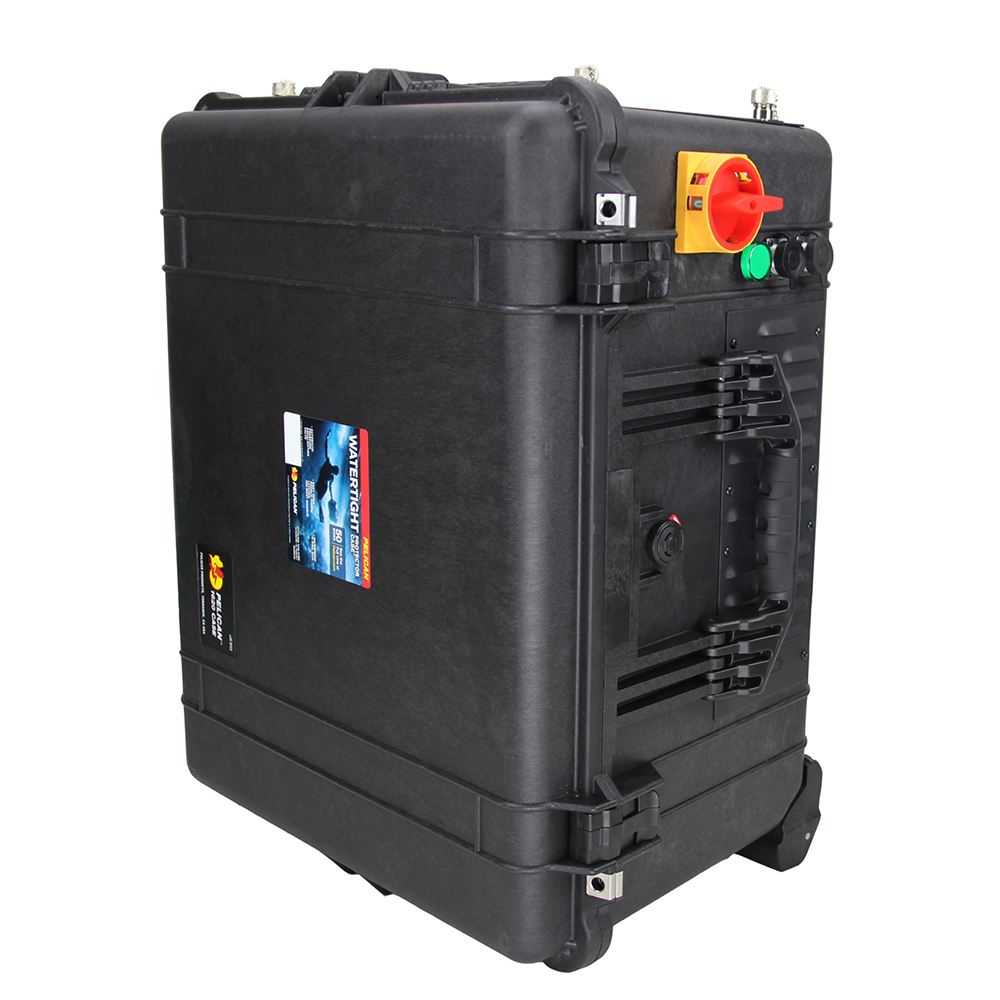

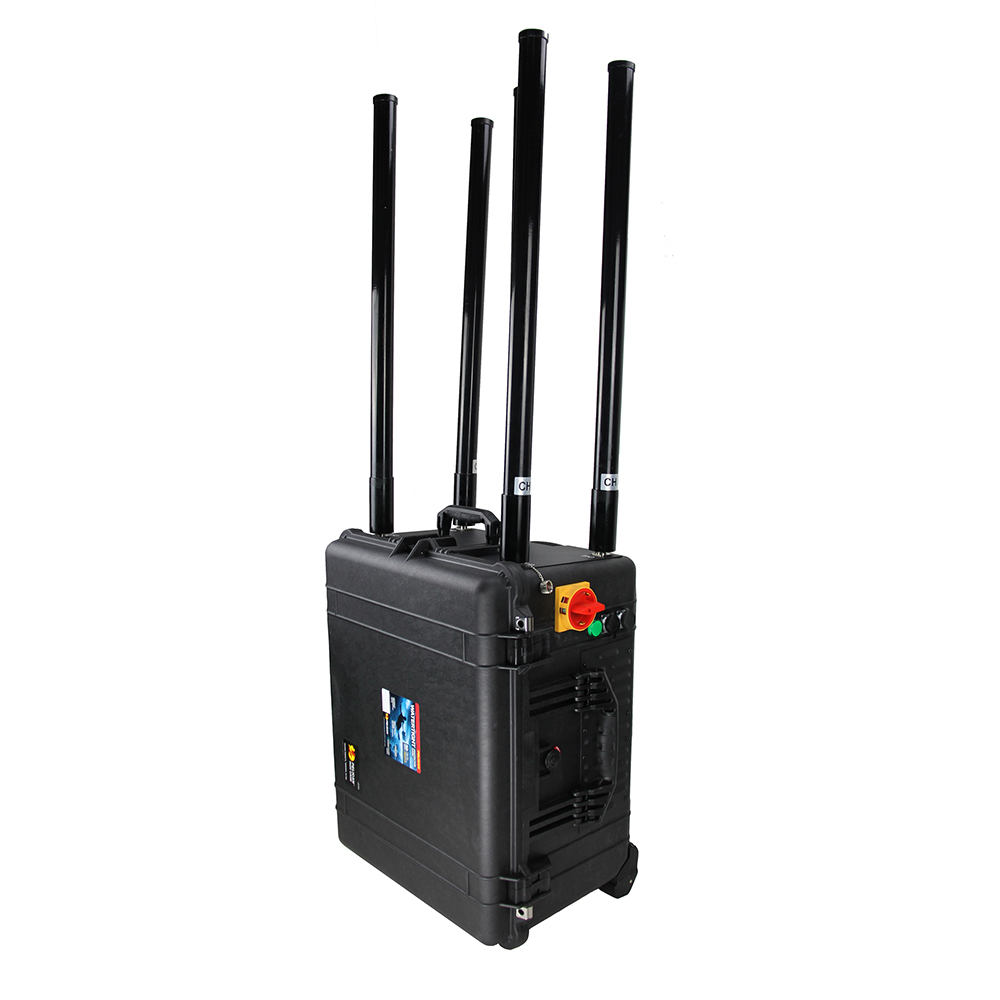

Techwise PCB-6060 6 Bands 600W Portable Mobile Phone Pelican Jammer
Military/Police/Government/Convoy Jamming
Portable RCIED Mobile Phone Pelican Jammer,
Max 600W 6 Bands
