Product Details
| PCB–3086A USA
(6 bands) |
PCB–3086E E4G
4G (6 bands) |
PCB–3086A AGL
(6 bands) |
PCB–3086E GL
VHF UHF (6 bands) |
||
| 850-895MHz 25W | 920-960MHz: 25W
GSM900 |
850-895MHz 25W | 920-960MHz: 25W
GSM900 |
||
| 1920-2000MHz
20 W |
1800-1880MHz 20 W PCS GSM 1800 | 1920-2000MHz
20 W |
1800-1880MHz 20 W PCS GSM 1800 | ||
| 2100-2170MHz
30 W 3G UMTS |
2100-2170MHz 30 W
3G UMTS |
2100-2170MHz
30 W 3G UMTS |
2100-2170MHz 30 W
3G UMTS |
||
| 700-800MHz:15W
iPhone (AT&T & Verizon) |
2620-2690MHz:20W
4G LTE High |
2400-2500MHz:20W
WiFi 11.b,g & Buletooth |
2620-2690MHz20W
4G LTE High |
||
| 2500-2700MHz:20W
4G WiMax Sprint+WiFi |
790-870MHz:20W
4G LTE Low |
173MHz:30W
LoJack 173 |
173MHz:30W
LoJack 173 |
||
| 2400-2500MHz:20W
WiFi 11.b,g & Buletooth |
2400-2500MHz: 20 W
WiFi 11.b, g |
GPS L1 1575MH: 40W
(1520-1670MHz: 40W) |
GPS L1 1575MH: 40W
(1520-1670MHz: 40W) |
||
| Total : 185W | Total : 205 W | Total : 190 W | Total : 175 W | ||
| Option: 5.8GHz: 2.0W, GPS L2 L3 L4 L5: 15W, VHF 130-180MHz: 20W, 300-400MHz: 20W, UHF 420-480MHz: 20W, 4G 2620-2690MHz: 20W, LoJack 173MHz: 30W | |||||
| Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF)
100% Safe VSWR over protection (Isolator) for each modular |
|||||
| Battery | +24V / 20AH LiFePO4 can work 1 Hours (PCB-3078B) | ||||
| Power supply: | AC110 or 220-240V /DC 27V | ||||
| Jamming Range | Radius 50~150 meters (-75dBm@Omnidirectional antennas) | ||||
| Weight | PCB-3086B 26kg | ||||
| Dimension: | 500 x 305 x 457 mm (Pelican 1440 Case only ) | ||||
| Working time: | Without the time limit, May continue to work, | ||||

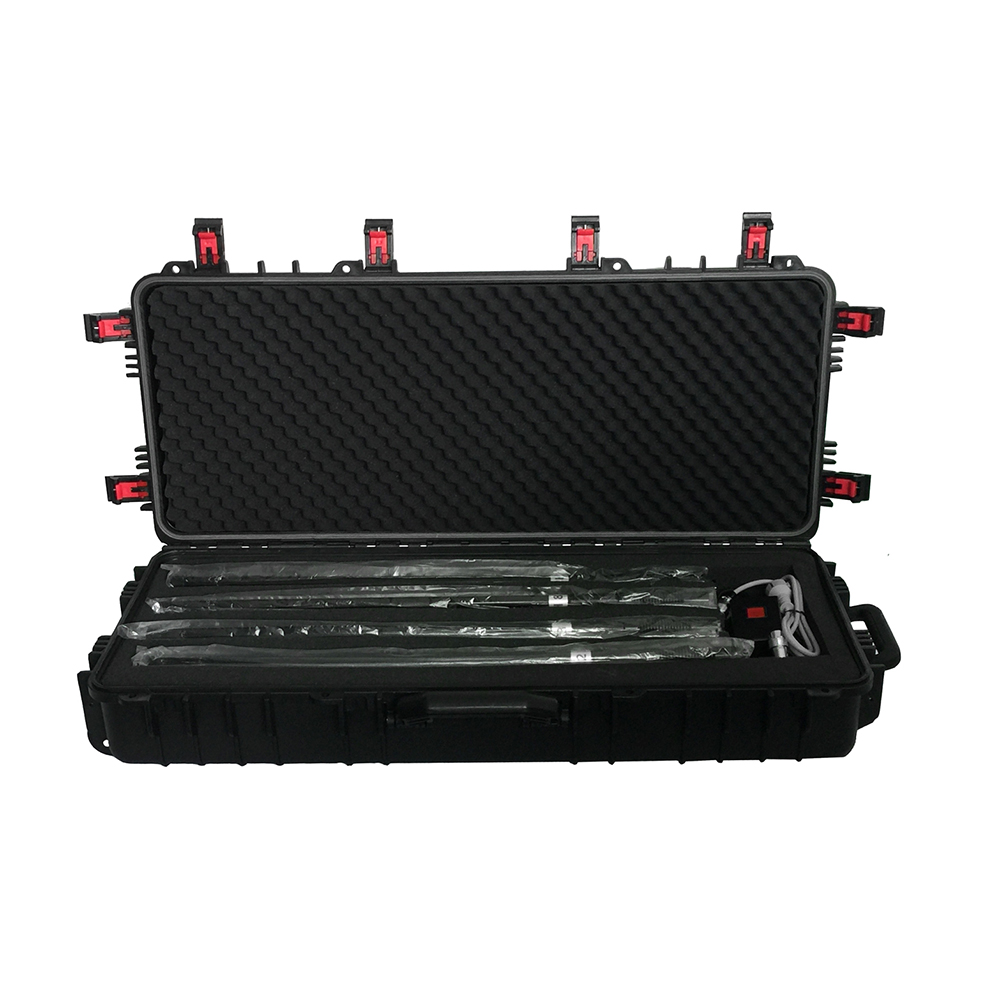

| Antenna | External Omni 750mm long or Directional Patch Panel Antennas | ||||
| Warranty: | 1 year | ||||

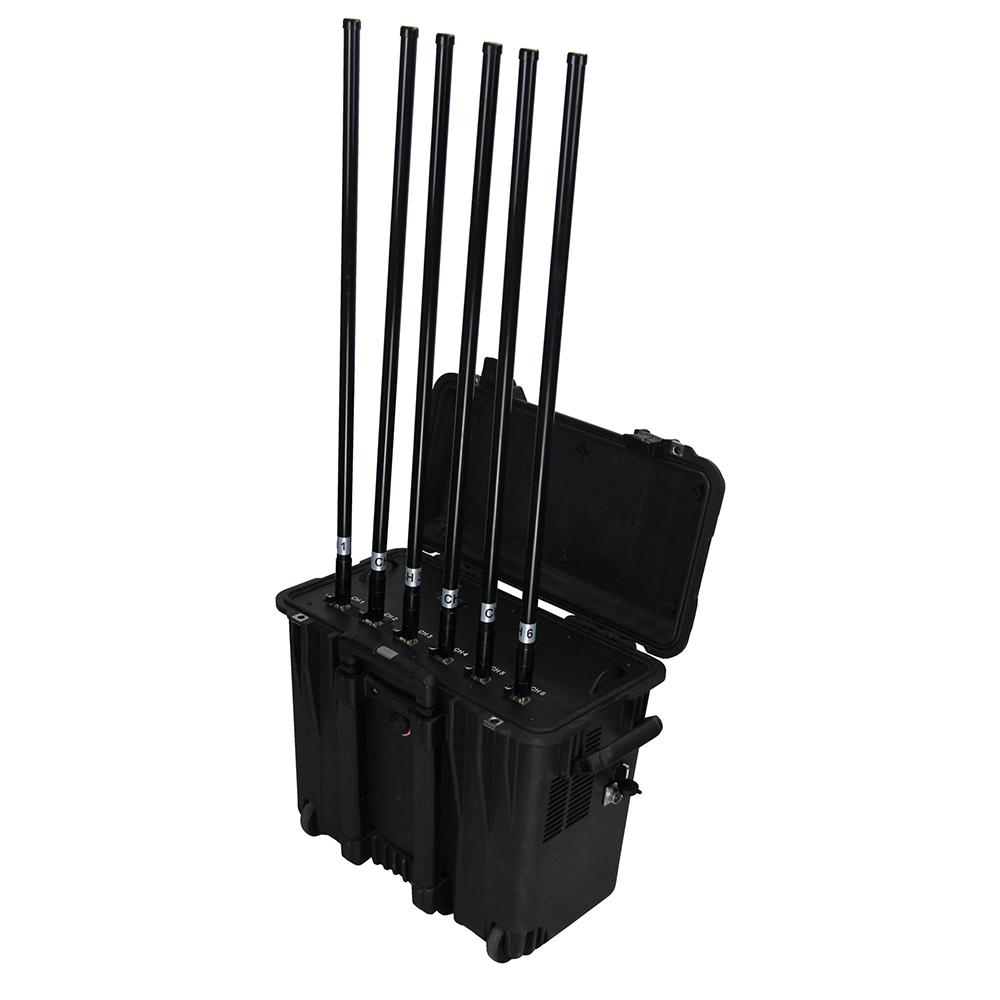

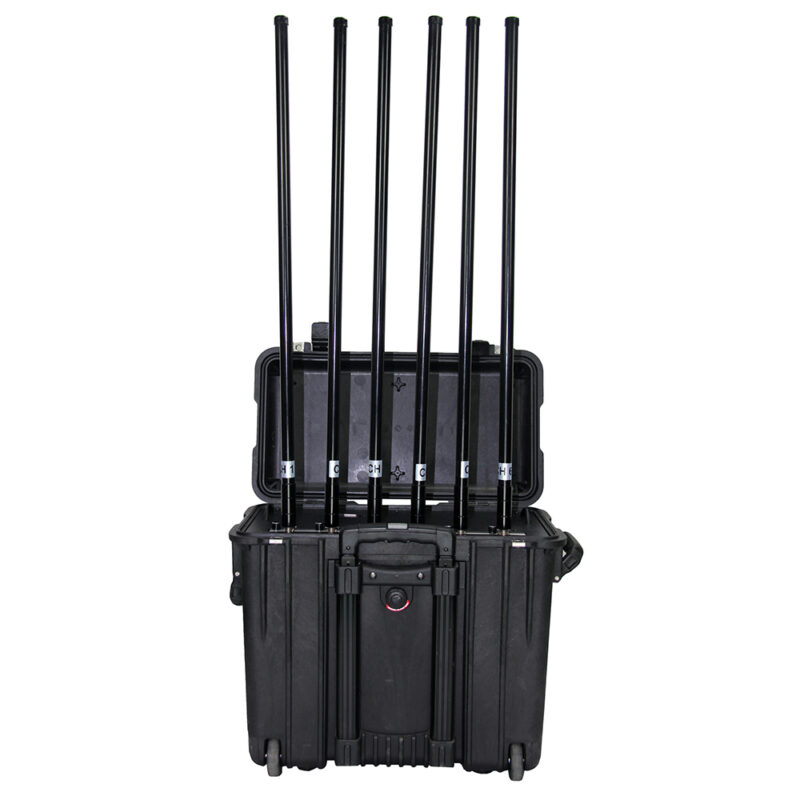

Techwise PCB-3086B 6 Bands Bulit-in Battery Mobile Phone Pelican Jammer
Mobile Phone 6 Bands
Pelican 1440
Omni or Directional Antennas
Built-in Battery
