Product Details

Portable Pelican RCIED, DDS Jammer is a wide-band portable jamming system, designed for Bomb disposal squads, VIP protection, Special Police (S.W.A.T.), military security force, bomb squads, anti-terror units, anti-drug units, border control units, checkpoint personnel, these types of law enforcement personnel who benefit greatly from deployment of any of these best-in-class portable RF jamming solutions.

They can conduct the law enforcement process more effectively to reduce the chance that the criminals leak the information.

DDS-6068E  Europe ( 8 Bands) DDS-6068A America  ( 8 Bands)
20-100MHz: 100W

27MHz, 35Mhz, 41MHz, 72MHz toys and HM Remote control

20-100MHz: 100W

27MHz, 35Mhz, 41MHz, 72MHz toys and HM Remote control

100-300MHz 100W  VHF

Low-power transmitters

100-300MHz 100W  VHF

Low-power transmitters

300-500MHz: 100W

Walky-Talky, 315/433MHz Car Remote Control

300-500MHz: 100W

Walky-Talky, 315/433MHz Car Remote Control

790-830MHz: 100W

4G Low LTE

725-805MHz: 100W

4G Low LTE

920-965MHz: 100W

GSM 900

850-895MHz: 100W

CDMA 850

1800-1880MHz 100W

DCS GSM 1800

1920-1990MHz 100W

PCS CDMA 1900

2100-2170MHz: 100W

3G UMTS

2100-2170MHz: 100W

3G UMTS

2570-2690MHz: 100W

4G LTE & WiMax

2500-2700MHz: 100W

4G LTE & WiMax

(Option) : 2.4GHz: 100W, GPS L1+ Glonass L1 500-1700MHz, GPS L2 + Glonass L2: 1100-1300MHz,  GPS L3+L4, GPS L5: 80W (Can be no Gap from 20-2700MHz)3.4-3.8GHz 50W, 5.1-.5.5GHz 50W, 5.5-5.9GHz: 50W (Option) : 2.4GHz: 100W, GPS L1+ Glonass L1 500-1700MHz, GPS L2 + Glonass L2: 1100-1300MHz,  GPS L3+L4, GPS L5: 80W (Can be no Gap from 20-2700MHz),5.1-.5.5GHz 50W, 5.5-5.9GHz: 50W
800 W 800 W
Power supply: AC adapter  (AC220V-DC27V or 24V/  45 Amp)  or External Battery
Jamming  Range: 500-1000 meters@-75dBm





Stand-alone modular design and individual power control.
RJ485 Protocol : Can control all 8 modules by one RJ485 connector (Not like RS-232 needs to connect each module one by one). One Computer interface control all 8 bands

Each module has one LED show Frequency, ON/OFF Status, Output power

One Main LED to show all 8 bands/modules status: Frequency, Four Windows setting, Output power, VSWR, Working Voltage, Working current Amp, Temperature

(Do not need Computer to check one module by one module status)

Adjustable the Frequency and Output Power each Band/Channel by Computer
VSWR over protection for each modular.
Working status indicator for each band modular.
Dimension:626 mm(L)×49.2mm(W)× 350mm(H), Pelican 1620
Weight:45 Kg (approximately) just main unit not included antenna & all accessories
Operating temperature: -20℃ ~ +60℃
Humidity: 5% ~ 90%
External Battery B-50AH  27V/50AH LiFePo4 Battery
  Pelican Case 1440, 35kg Weight
  Work 1 Hour Around
Warranty: 1 year

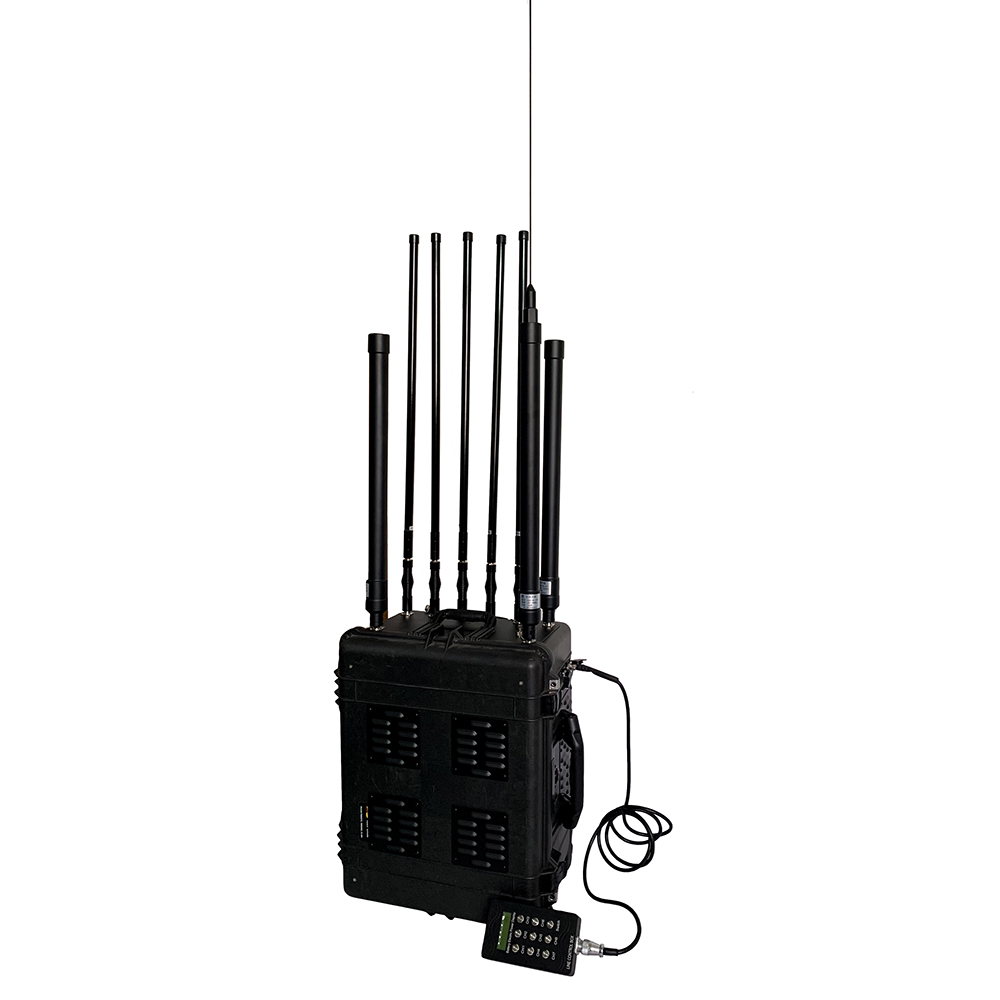

Techwise DDS-6068 8 Bands 800W Portable Mobile Phone Pelican Jammer

Portable RCIED Mobile Phone Pelican Jammer

Direct Digital Synthesize Technology DDS

Max 800W 8 Bands, RJ485 Protocol
