Product Details
Portable Pelican RCIED, DDS Jammer is a wide-band portable jamming system, designed for Bomb disposal squads, VIP protection, Special Police (S.W.A.T.), military security force, bomb squads, anti-terror units, anti-drug units, border control units, checkpoint personnel, these types of law enforcement personnel who benefit greatly from deployment of any of these best-in-class portable RF jamming solutions.
They can conduct the law enforcement process more effectively to reduce the chance that the criminals leak the information.
| DDS-6010 ( 10 Bands) | |
| 20-100MHz: 100W
27MHz, 35Mhz, 41MHz, 72MHz toys and HM Remote control |
|
| 100-300MHz 100W VHF
Low-power transmitters |
|
| 300-500MHz: 100W
Walky-Talky, 315/433MHz Car Remote Control |
|
| 500-800MHz: 100W
4G LTE |
|
| 800–1000MHz: 100W
GSM 900 |
|
| 1000-1400MHz 100W
GPS L2, L3 L4 L5 |
|
| 1400–1800MHz: 100W
GPS L1 |
|
| 1800-2000MHz: 100W
4G LTE & WiMax |
|
| 2000-2300MHz 100W
3G UMTS |
|
| 2300-2700MHz: 100W
4G LTE, WiFi 11.g.b |
|
| 10000 W | |
| Power supply: | AC adapter (AC220V-DC27V or 24V/ 45 Amp) or External Battery |
| Jamming Range: | 500-1000 meters@－75dBm |
| Stand-alone modular design and individual power control. | |
| RJ485 Protocol : Can control all 10 modules by one RJ485 connector (Not like RS-232 needs to connect each module one by one). One Computer interface control all 8 bands

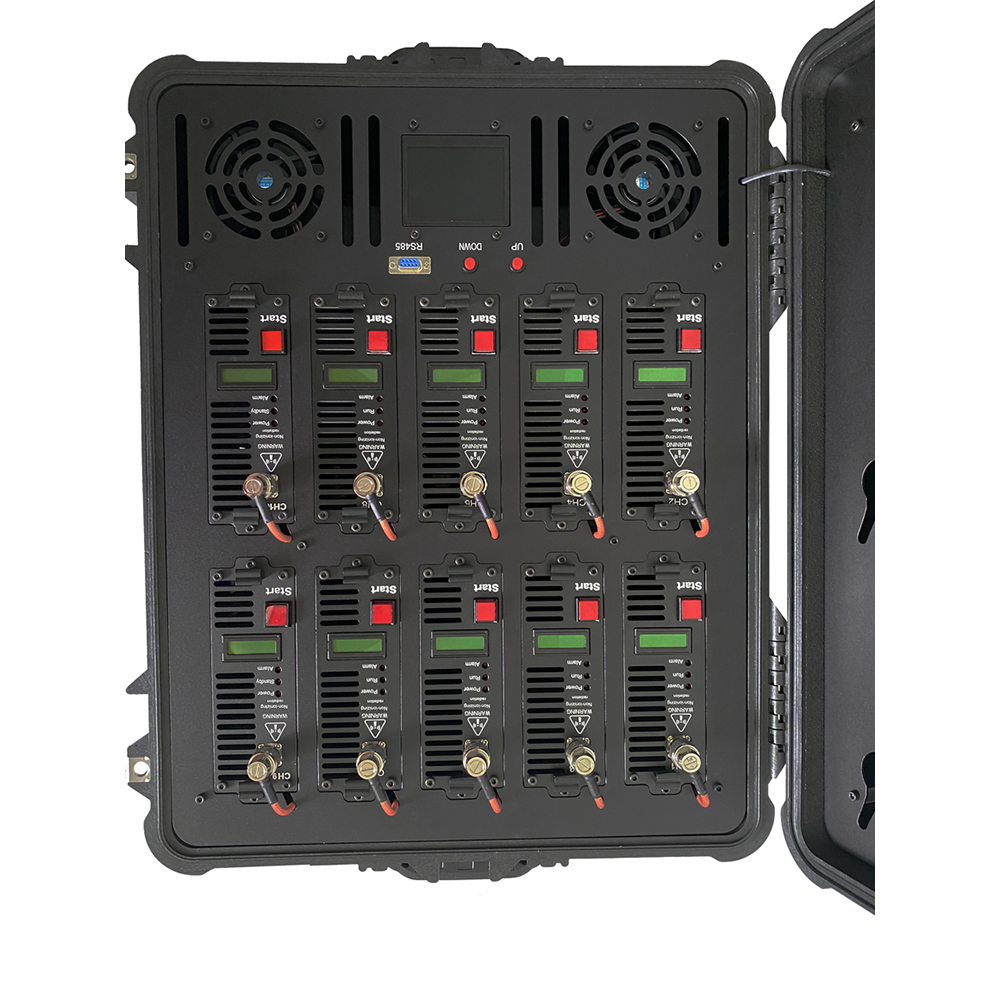

Each module has one LED show Frequency, ON/OFF Status, Output power One Main LED to show all 8 bands/modules status: Frequency, Four Windows setting, Output power, VSWR, Working Voltage, Working current Amp, Temperature (Do not need Computer to check one module by one module status) |
|
| Adjustable the Frequency and Output Power each Band/Channel by Computer | |
| VSWR over protection for each modular. | |
| Working status indicator for each band modular. | |
| Dimension：626 mm(L)×49.2mm(W)× 350mm(H), Pelican 1620 | |
| Weight：53 Kg (approximately) just main unit not included antenna & all accessories | |
| Operating temperature: -20℃ ~ +60℃ | |
| Humidity: 5% ~ 90% | |
| External Battery | B-50AH 27V/50AH LiFePo4 Battery |
| Pelican Case 1440, 30kg Weight | |
| Work 1 Hour Around | |
| Warranty: | 1 year |
Techwise DDS-6010 10 Bands 20-3000MHz Pelican Jammer
Portable RCIED Mobile Phone Pelican Jammer，
Direct Digital Synthesize Technology DDS
20-3000MHz 10 Bands, RJ485 Protocol
