Product Details
| CPB–3060A USA
(6 bands) |
CPB–3060E Eur
4G (6 bands) |
CPB–3060GL Lojack
GPS (6 bands) |
CPB–3060VU
VHF UHF (6 bands) |
| 850-895MHz 25W | 920-960MHz: 25W
GSM900 |
920-965MHz: 25W
(850-895MHz 25W) |
920-965MHz: 25W
(850-895MHz 25W) |
| 1800-2000MHz
20 W |
1800-1880MHz 20 W PCS GSM 1800 | 1800-1880MHz:20W
(1920-1990MHz 20W) |
1800-1880MHz:20W
(1920-1990MHz 20W) |
| 2100-2170MHz
30 W 3G UMTS |
2100-2170MHz 30 W
3G UMTS |
2100-2170MHz 30W
3G UMTS |
2100-2170MHz 30W
3G UMTS |
| 700-800MHz:15W
iPhone (AT&T & Verizon) |
2620-2690MHz:20W
4G LTE High |
2620-2690MHz: 20W
4G LTE High |
2620-2690MHz:20W
4G LTE High |
| 2500-2700MHz:20W
4G WiMax Sprint+WiFi |
790-870MHz:20W
4G LTE Low |
173MHz:30W
LoJack 173 |
130-180MHz: 20W
VHF Walkie Talkie |
| 2400-2500MHz:20W
WiFi 11.b,g & Buletooth |
2400-2500MHz: 20W
WiFi 11.b, g |
GPS L1 1575MH: 40W
(1520-1670MHz: 40W) |
420-480MHz: 20W
UHF Walkie Talkie |
| Total : 130W | Total : 135 W | Total : 165 W | Total : 135 W |
| Option: GPS L2 L3 L4 L5: 15W, VHF 130-180MHz: 20W, 300-400MHz: 20W, UHF 420-480MHz: 20W,
4G 2620-2690MHz: 20W, LoJack 173MHz: 30W, 4G LTE USA Iphone 700-800MHz: 15W |
|||
| Adjustable Output Power each Band/Channel, Max Output Power to 0 (OFF)
100% Safe VSWR over protection (Isolator) for each modular Option: Remote Control 10-30m |
|||
| Power supply: | AC110 or 220-240V /DC 27V | ||
| Jamming Range | Radius 100~300 meters (-75dBm@Omnidirectional antennas) | ||
| Weight | 22Kg | ||
| Dimension: | 520 x 340 x 200mm | ||
| Working time: | Without the time limit, May continue to work, | ||
| Antenna | External Omni 500mm long or Directional Patch Panel Antennas | ||
| Warranty: | 1 year | ||

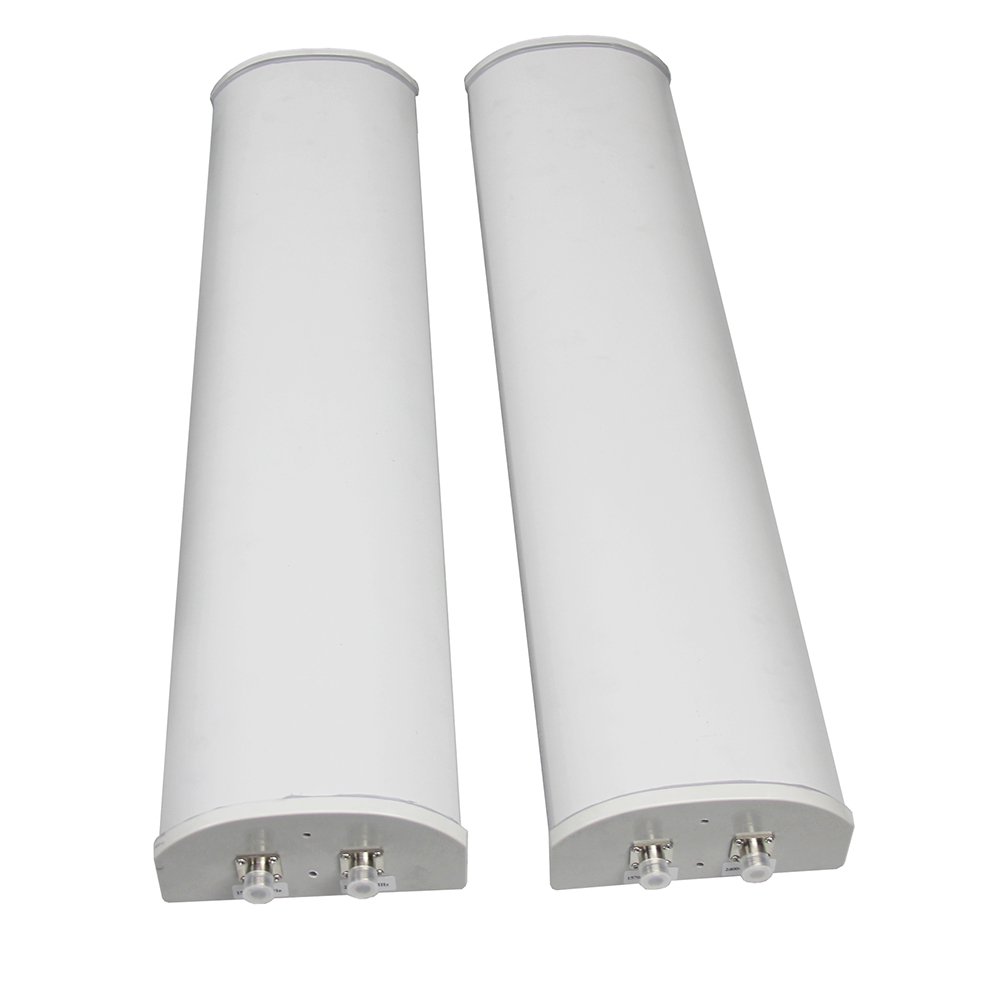

HIGHER GAIN DIRECTIONAL ANTENNA THREE BANDS IN ONE ANTENNA
ELECTRICAL SPECIFICATIONS
Frequency Range————————- 700-965/1710-2700MHz
Impedance———————————- 50 Ohm
VSWR—————————————- ≤1.5
Gain——————————————- (700-965)：2×10dBi (1710-2700)：2×12dBi
Front to Back Ratio———————– ＞25dB
Polarization——————————— ±45°
Horizontal 3dB Beam Width———— (806-960)：90° (1710-2500)：90°
Vertical 3dB Beam Width————— (806-960)：50° (1710-2500)：30°
Maximum Input Power——————- 200W
Lighting Protection———————— Direct Ground
Connector Place————————— Bottom
Connector———————————– N-Female
MECHANICAL SPECIFICATIONS
Dimensions(L/W/D)————————- 680*280*80mm
Weight—————————————— 6kg
Rated Wind Velocity———————— 60m/s
Operating Temperature——————– -40℃-60℃
Mounting Hardware————————- Ø40-Ø75mm
Radiating Element Material————— Zinc Alloy、Aluminum Alloy
Reflector Material————————— Aluminum Alloy
Radome Material—————————- PVC
Radome Color——————————– Gray

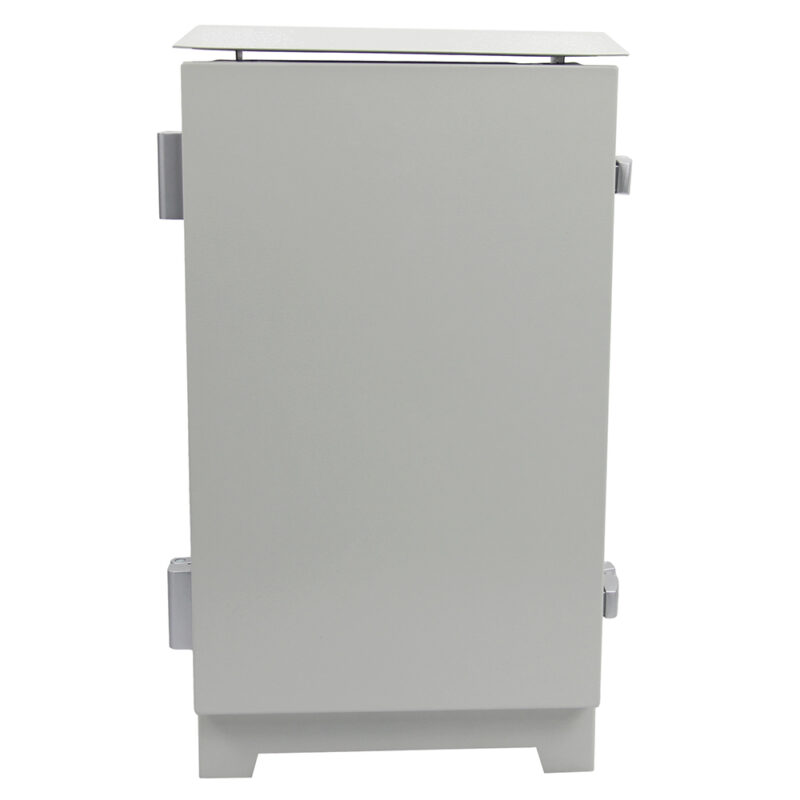

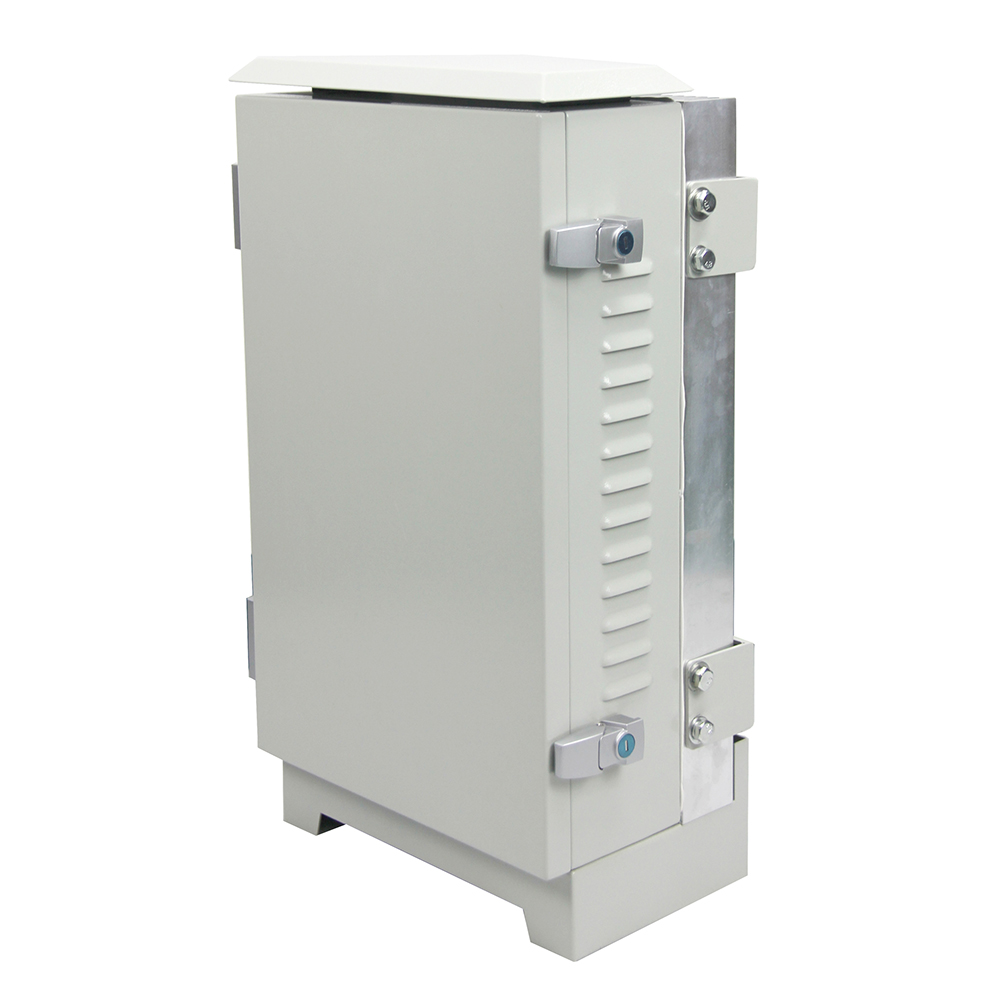

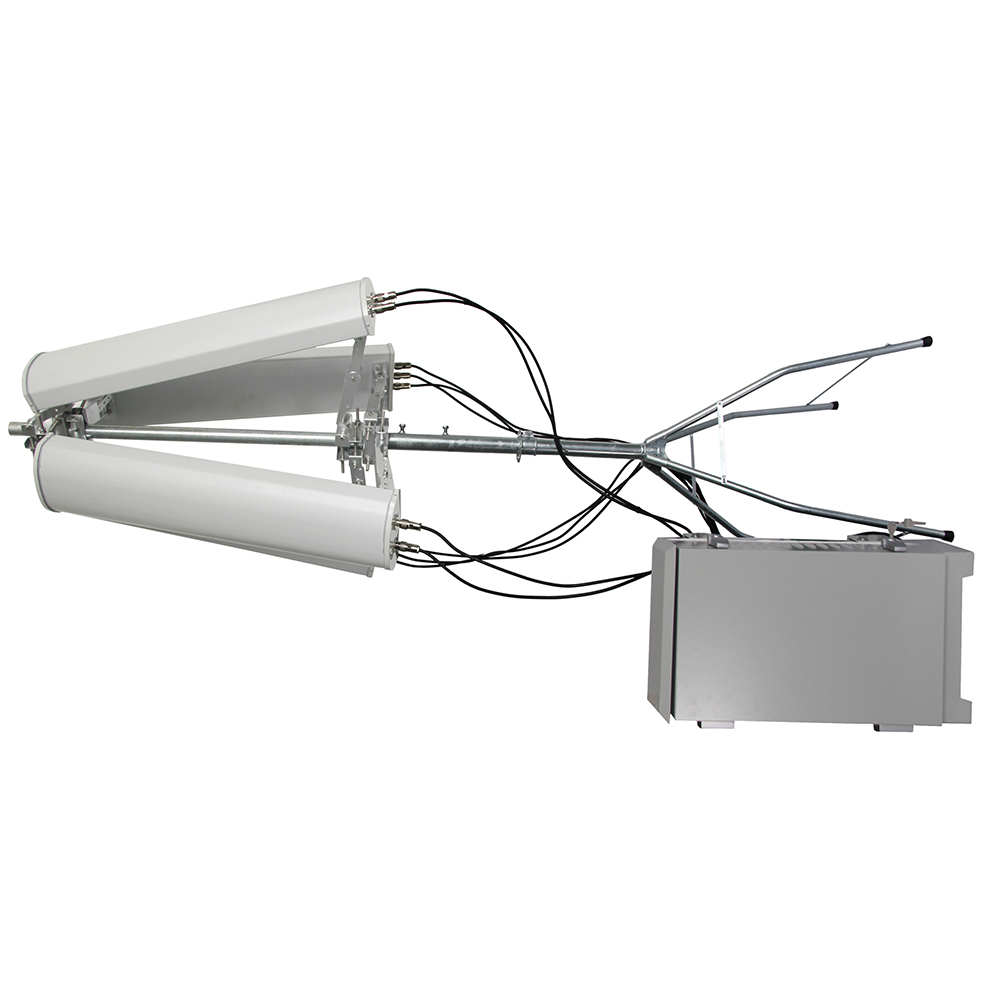

Techwise CPB-3060-HGA 6 Bands 135W 4G Mobile Phone + WiFi GPS Outdoor Jammer
Mobile Phone + WiFi / GPS / 4G
6 Bands, Higher Gain Antenna
Waterproof for Jail Project, Outdoor
