Product Details
| CPB-2620HB-E ( 20 Bands) Europe | CPB–2620HB-A ( 20 Bands) America | |
| 758-830MHz: 10W 5G, 4G LTE Low | 850-895MHz: 10W CDMA 850 | |
| 920-965MHz: 10W GSM900 | 1800-2000MHz: 10W DCS, PCS | |
| 1800-1920MHz: 10W DCS | 2100-2170MHz: 10W 3G, UMTS | |
| 2100-2170MHz: 10W 3G, UMTS | 2300-2500MHz: 8W 4G LTE + WiFi 11.b & g | |
| 2400-2500MHz: 8W WiFi 11.b & g | 2500-2700MHz:8W4G WiMAX Sprint | |
| 2570-2690MHz:8W 4G LTE High | 700-800MHz: 10W
4G LTE USA iPhone (AT&T & Verizon) |
|
| 1450-1500MHz 10W 5G | 5G 617-652MHz 10W 5G | |
| 5G 3400-3800MHz 4W 5G | 1370-1390MHz: 10W GPS L3+ L4 | |
| 164-173MHz: 5W Lojack Car Tracking | 173MHz: 5W Lojack Car Tracking | |
| 1570-1620Mhz: 10W GPS: L1 + Glonass L1 | 1570-1620Mhz: 10W GPS: L1 + Glonass L1 | |
| 1220-1280MHz: 10W GPS L2 +L5+ Glonass L2 | 1220-1280MHz: 10W GPS L2 +L5+ Glonass L2 | |
| 5.1-5.9GHz:4.0W WiFi 11.a | 5.1-5.9GHz:4.0W WiFi 11.a | |
| 130-200MHz: 5W VHF | 130-200MHz: 5W VHF | |
| 200-300MHz: 5W | 200-300MHz: 5W | |
| 300-400MHz: 5W 315MHz Car Remote | 300-400MHz: 5W 315MHz Car Remote | |
| 400-500MHz: 5W UHF, 433MHz | 400-500MHz: 5W UHF, 433MHz | |
| 315MHz: 5W Car Remote | 315MHz: 5W Car Remote | |
| 433MHz: 5W Car Remote | 433MHz: 5W Car Remote | |
| 868MHz: 10W Car Remote | 868MHz: 10W Car Remote | |
| 1370-1390MHz: 10W GPS L3+ L4 | 1700-1800MHz: 10W | |
| Total: 155 W | Total: 155 W | |
| Option: Remote/Alarm Control 315MHz, 433MHz, 868MHz,
All Frequency can mix very Flexible, Each module/Band is independent |
||
| Adjustable Output Power/LED each Band/Channel, Max Output Power to 0 (OFF) | ||
| Battery Time | Work 60 Mins / AC100-240V or DC 24V | |
| Jamming Range | Radius 20~60 meters (-75dBm@Omnidirectional antennas) | |
| Weight | 7.8Kg | |
| Dimension: | 440 x 250 x 90mm | |
| Working time: | Without the time limit, May continue to work, | |
| Antenna | 380 mm Long | |
| Warranty: | 1 year | |

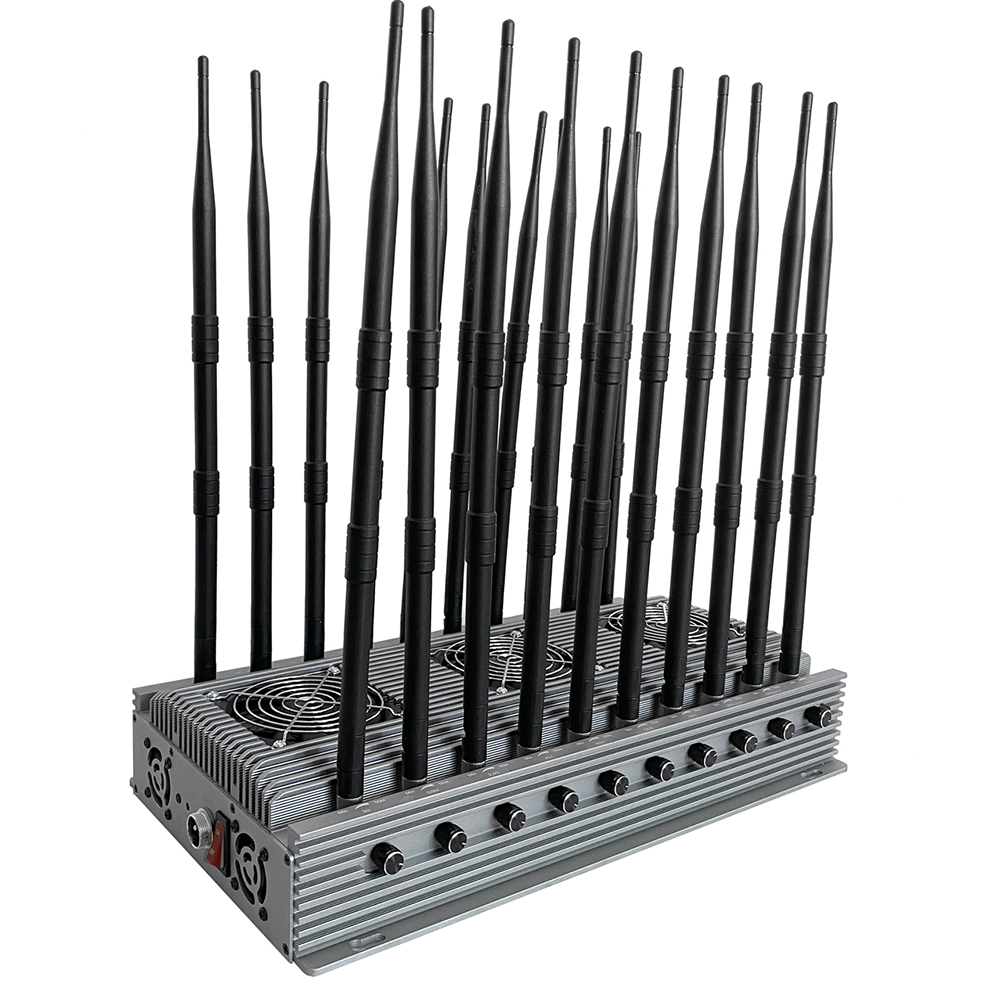

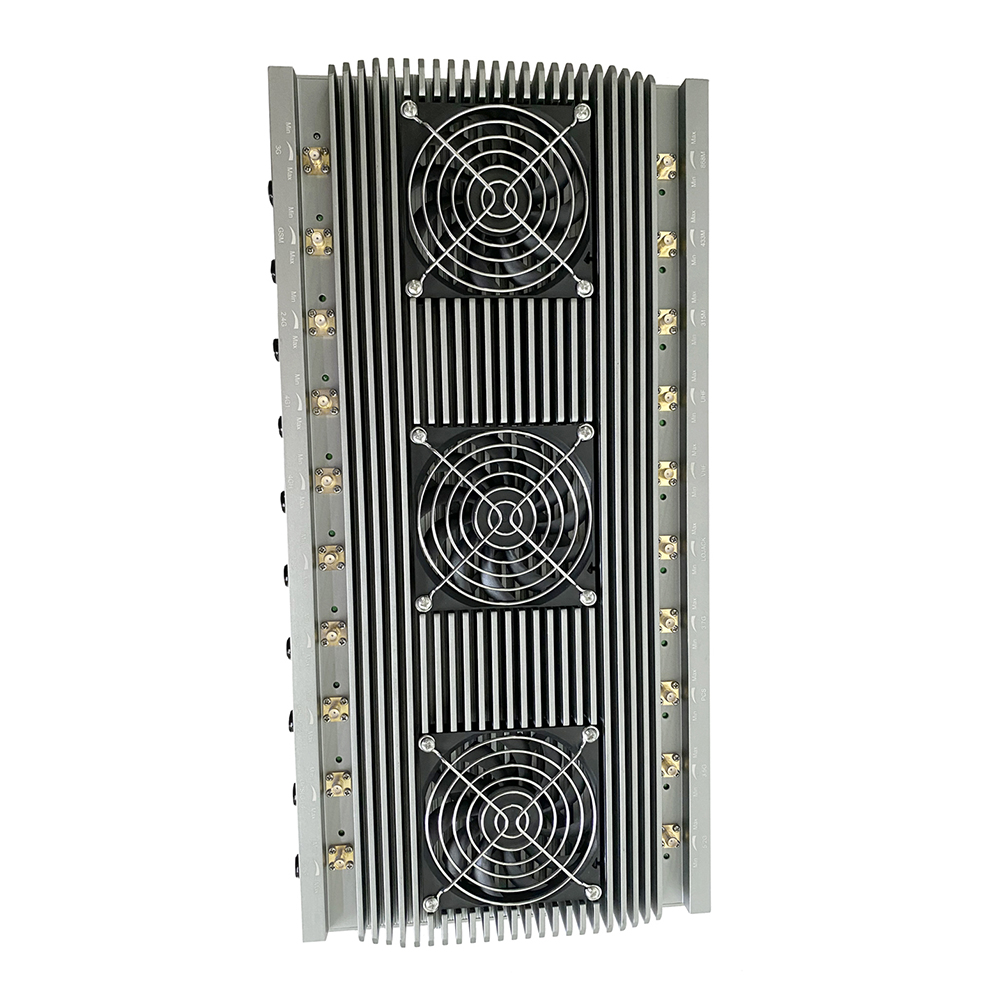

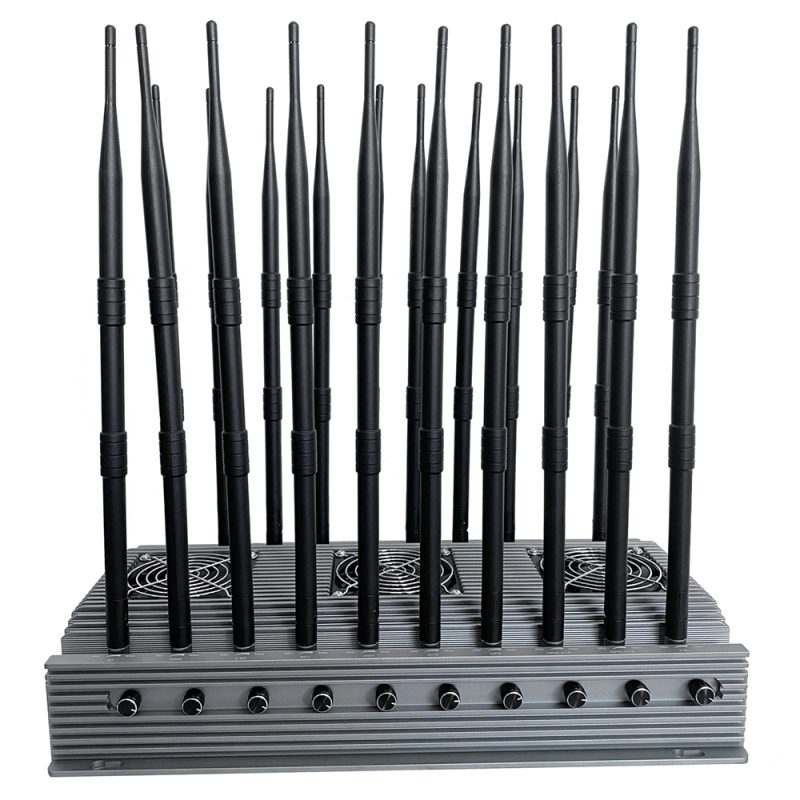

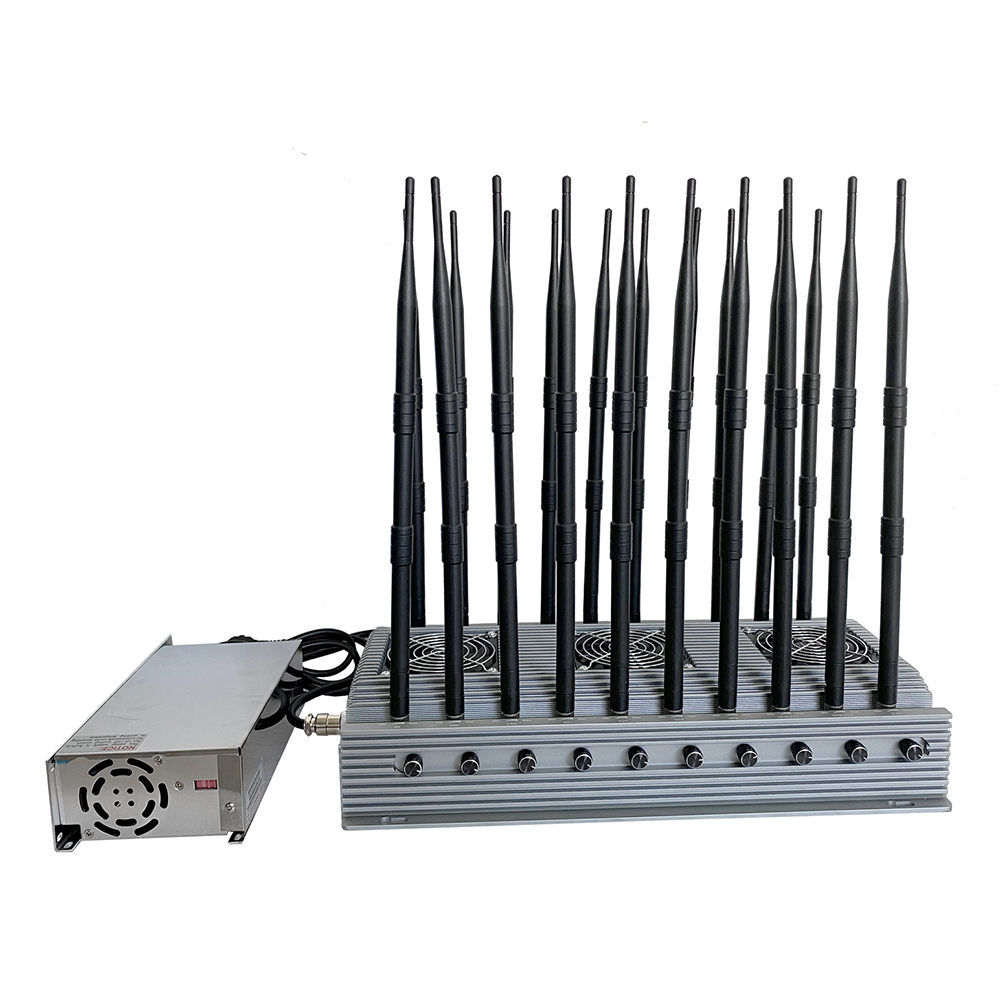

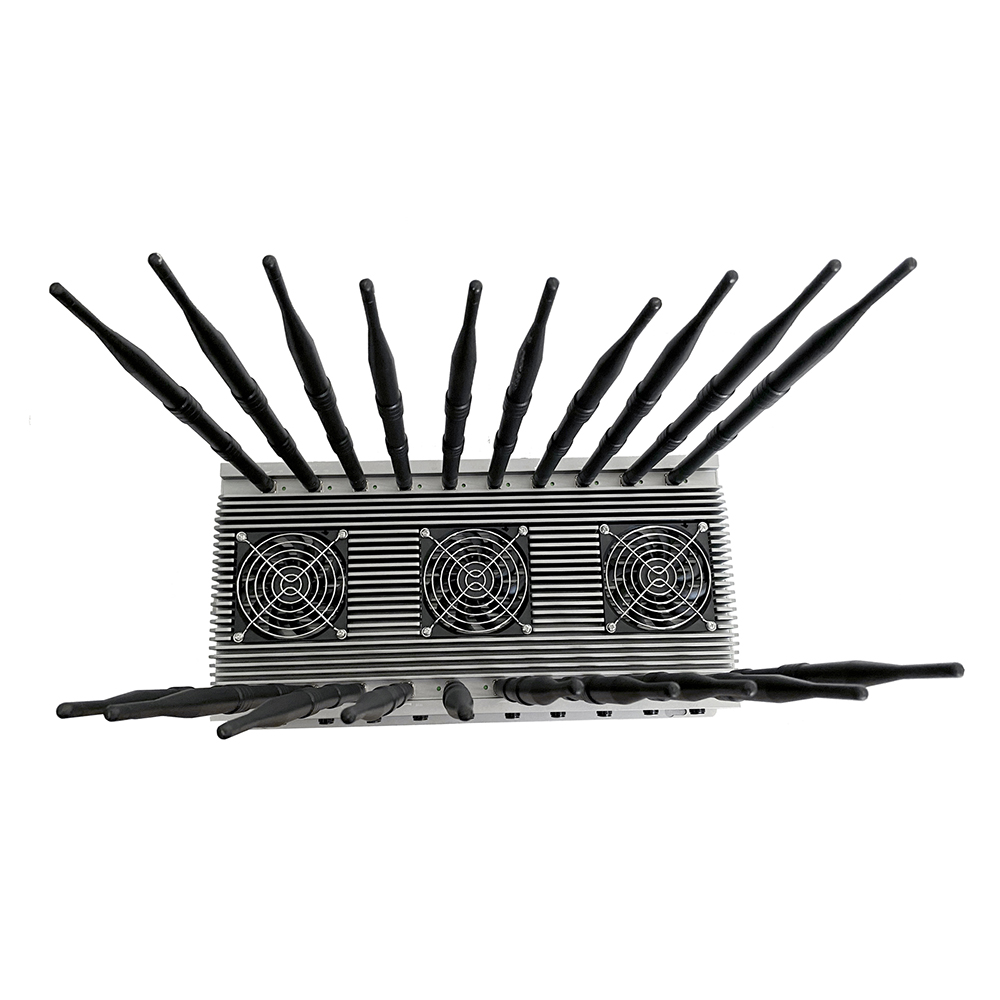

Techwise CPB-2620HB 20 Bands Built-in Battery 5G Mobile Phone WiF GPS UHF VHF Jammer
CPB-2620HB Series
Built-in Battery
